What is the time app

  • WhatIsTheTime.com allows people to know what time it is
  • We don’t need a database
  • We want to start small and can accept downtime
  • We want to fully scale vertically and horizontally, no downtime
  • Let’s go through the Solutions Architect journey for this app
  • Let’s see how we can proceed!

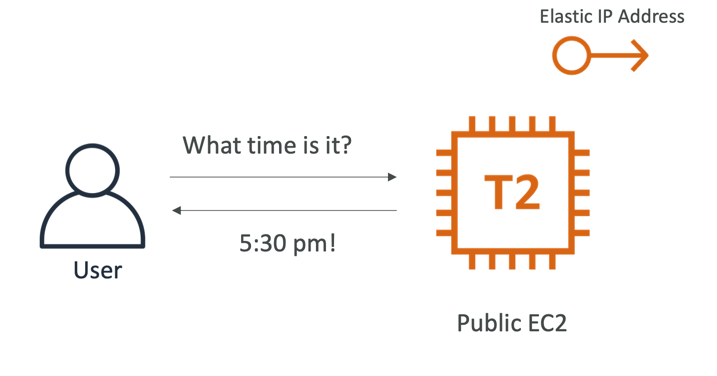

Starting simple​


Scaling vertically​

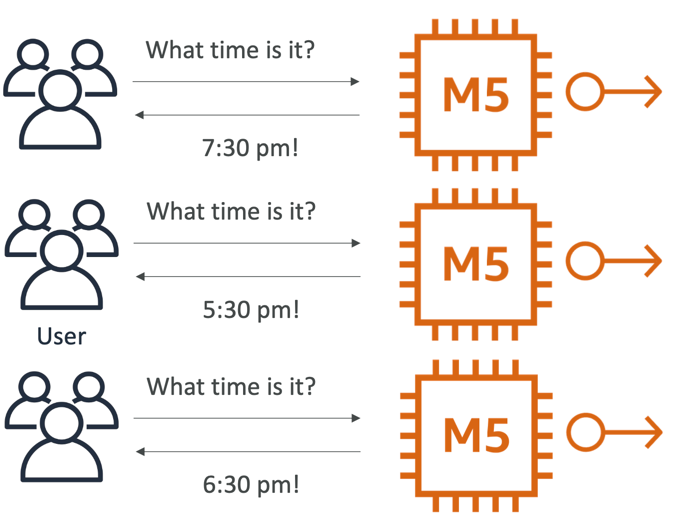

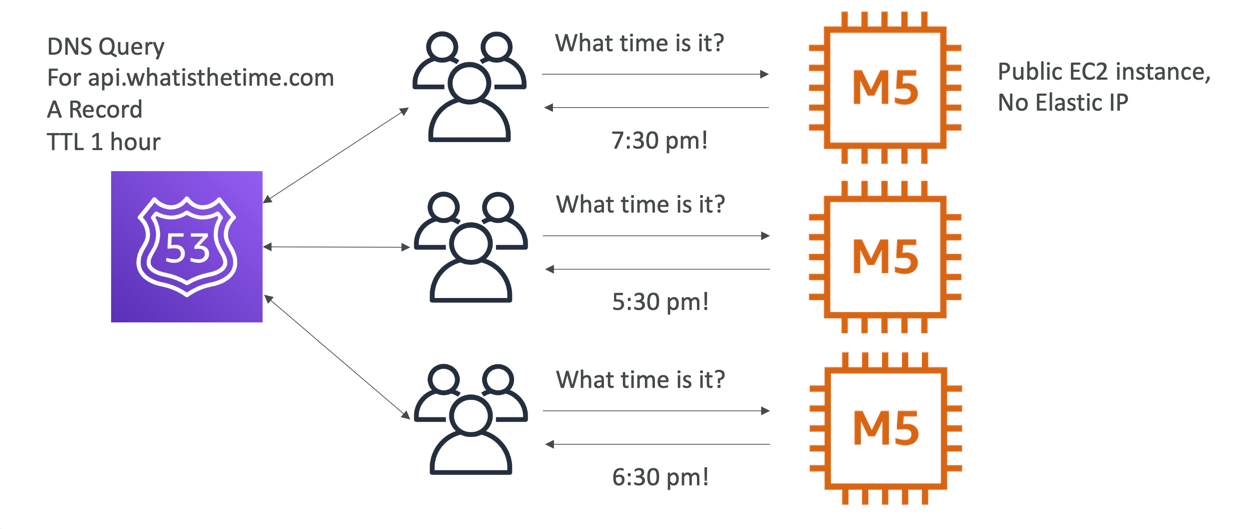

Scaling horizontally​

img.png img.png img.png

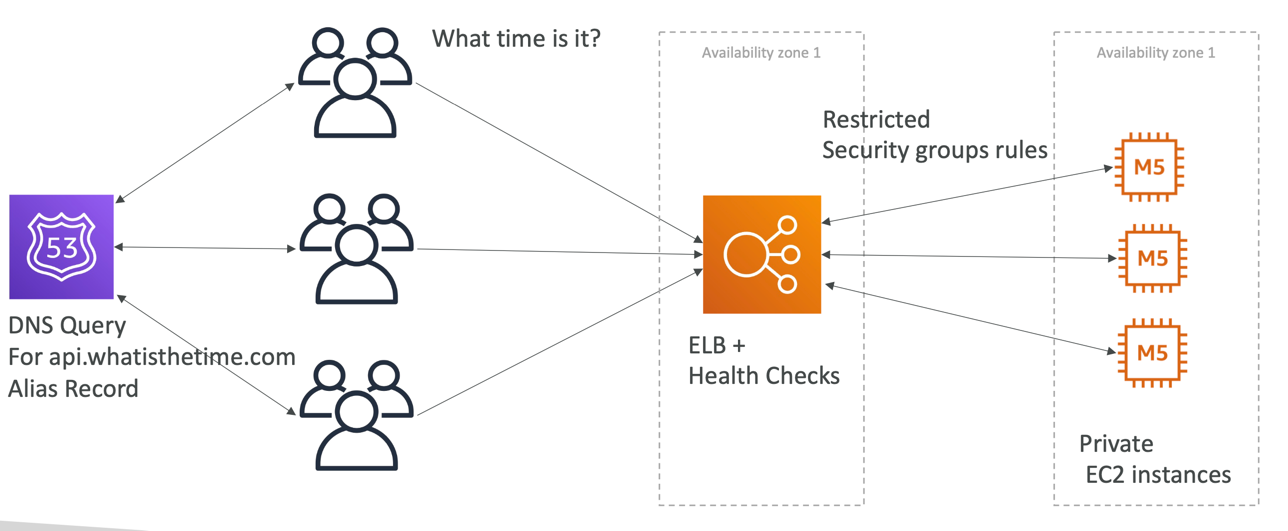

Scaling horizontally, with a load balancer​

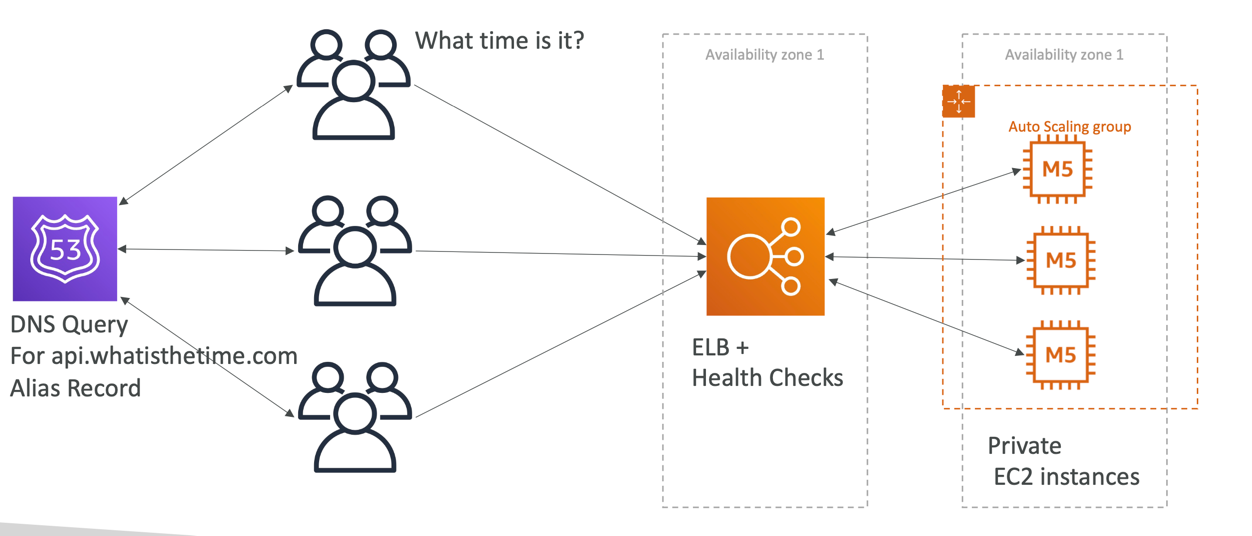

Scaling horizontally, with an auto-scaling group​

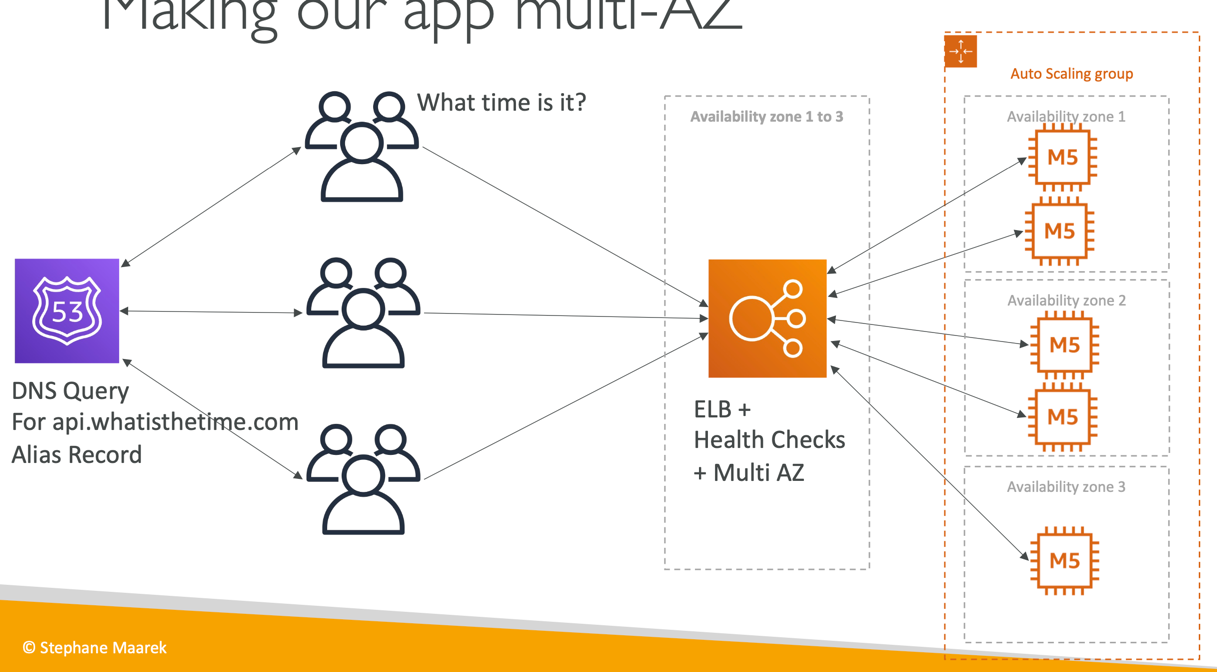

Making our app multi-AZ​

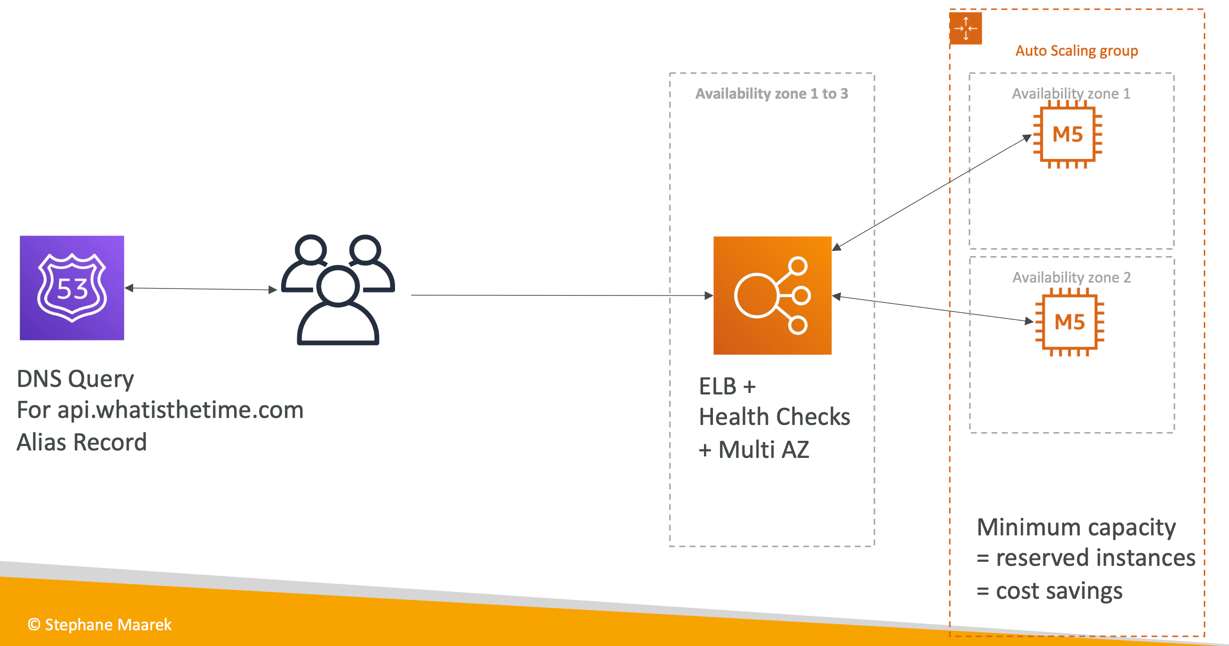

Let’s reserve capacity​


In this lecture we’ve discussed…​

  • Public vs Private IP and EC2 instances
  • Elastic IP vs Route 53 vs Load Balancers
  • Route 53 TTL, A records and Alias Records
  • Maintaining EC2 instances manually vs Auto Scaling Groups
  • Multi AZ to survive disasters
  • ELB Health Checks
  • Security Group Rules
  • Reservation of capacity for costing savings when possible
