Introduction to Elastic Load Balancer

• Spread load across multiple downstream instances
• Expose a single point of access (DNS) to your application
• Seamlessly handle failures of downstream instances
• Do regular health checks to your instances
• Provide SSL termination (HTTPS) for your websites
• High availability across zones
• An ELB (Elastic Load Balancer) is a managed load balancer
• AWS guarantees that it will be working
• AWS takes care of upgrades, maintenance, high availability
• AWS provides only a few configuration knobs
• It costs less to setup your own load balancer but it will be a lot more effort on your end (maintenance, integrations)

Why use an ELB?

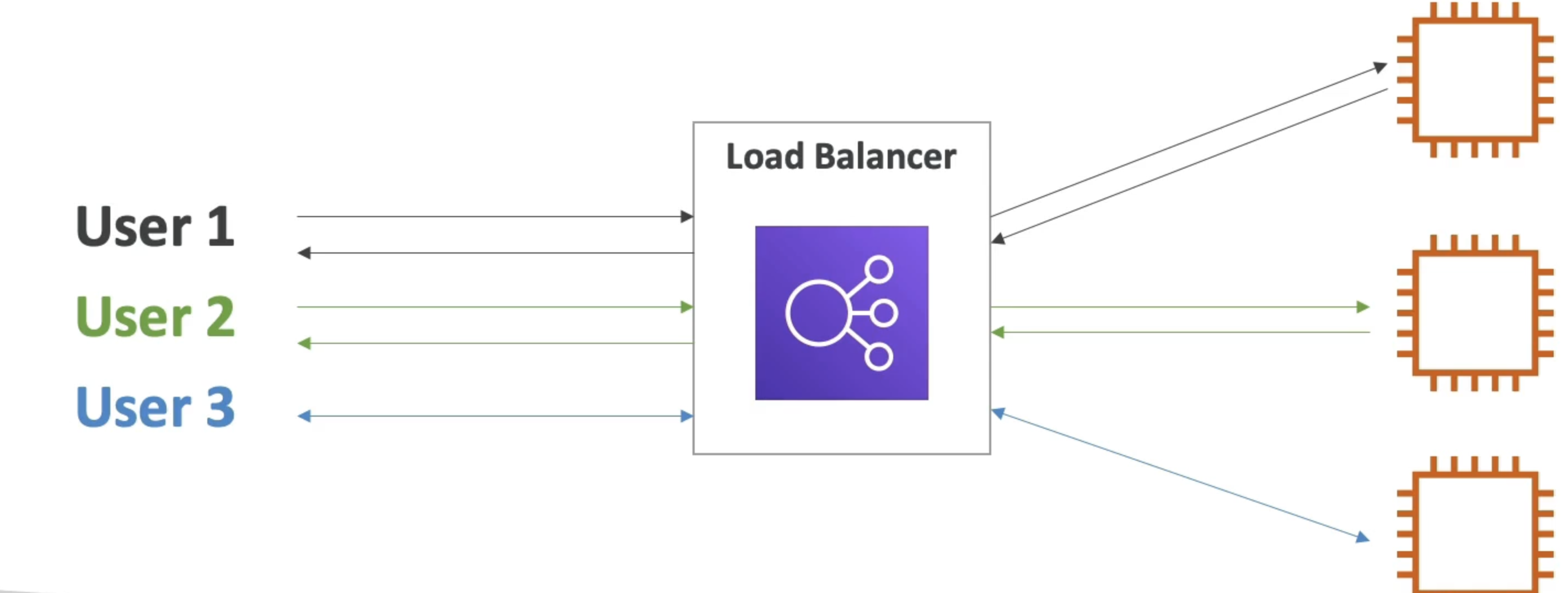

• Spread load across multiple downstream instances
• Expose a single point of access (DNS) to your application
• Seamlessly handle failures of downstream instances
• Do regular health checks to your instances

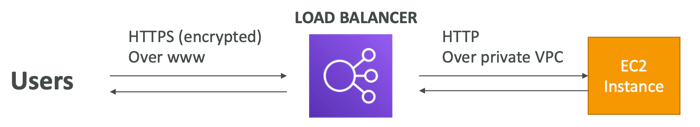

• Provide SSL termination (HTTPS) for your websites
• Enforce stickiness with cookies
• High availability across zones
• Separate public traffic from private traffic

Health Checks

• Health Checks are crucial for Load Balancers
• They enable the load balancer to know if instances it forwards traffic to are available to reply to requests

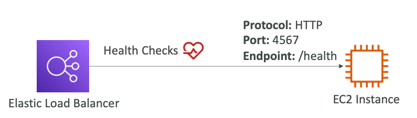

• The health check is done on a port and a route (/health is common)
• If the response is not 200 (OK), then the instance is unhealthy

4 kinds of load balancers offered by AWS:

• Classic Load Balancer (v| - old generation) - 2009 - CLB -НТТР, HTTPS, TCP, SSL (secure TCP)
• Application Load Balancer (v2 - new generation) - 2016 - ALB
  • НТТР, HTTPS, WebSocket
• Network Load Balancer (v2 - new generation) - 2017 - NLB
  • TCP, TLS (secure TCP), UDP
• Gateway Load Balancer - 2020 - GWLB
  • Operates at layer 3 (Network layer) - IP Protocol

Security Groups

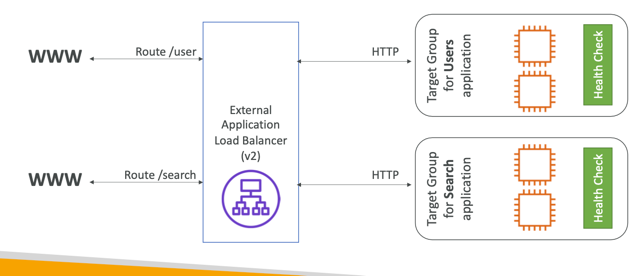

Application Load Balancer (ALB)

• Application load balancers is Layer 7 (HTTP)
• Load balancing to multiple HTTP applications across machines (target groups)
• Load balancing to multiple applications on the same machine (ex: containers)
• Support for HTTP/2 and WebSocket
• Support redirects (from HTTP to HTTPS for example)

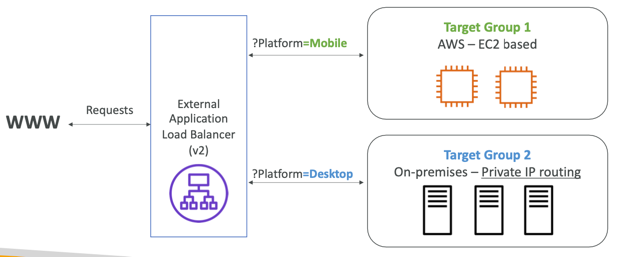

• Routing tables to different target groups:
• Routing based on path in URL (example.com/users & example.com/posts)
• Routing based on hostname in URL (one.example.com & other.example.com)
• Routing based on Query String, Headers (example.com/users?id=123&order=false)
• ALB are a great fit for micro services & container-based application (example: Docker & Amazon ECS)
• Has a port mapping feature to redirect to a dynamic port in ECS
• In comparison, we’d need multiple Classic Load Balancer per application

Target Groups

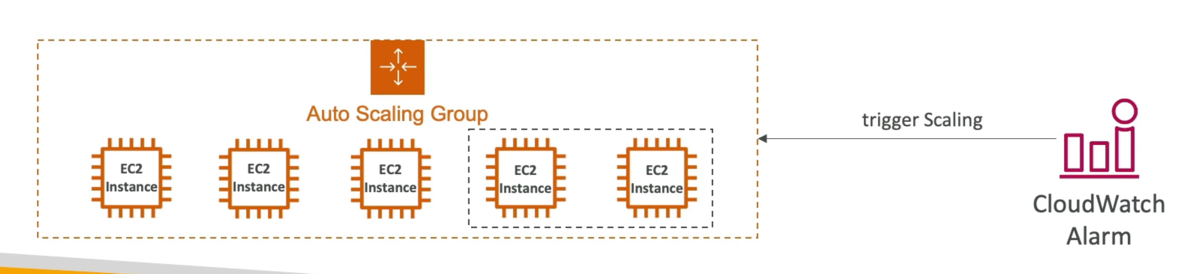

• EC2 instances (can be managed by an Auto Scaling Group) – HTTP
• ECS tasks (managed by ECS itself) – HTTP
• Lambda functions – HTTP request is translated into a JSON event
• IP Addresses – must be private IPs
• ALB can route to multiple target groups
• Health checks are at the target group level

Good to know

• Fixed hostname (XXX.region.elb.amazonaws.com)

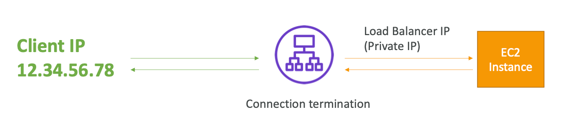

• The application servers don’t see the IP of the client directly
• The true IP of the client is inserted in the header X-Forwarded-For
• We can also get Port (X-Forwarded-Port) and proto (X-Forwarded-Proto)

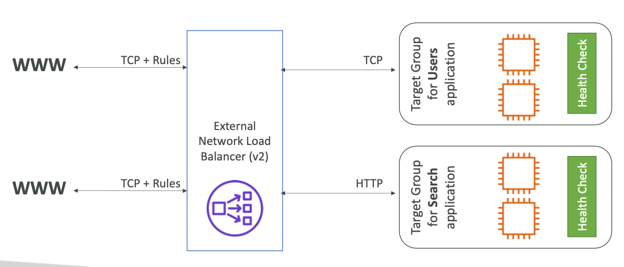

Network Load Balancer (NLB)

• Network load balancers (Layer 4) allow to:
  • Forward TCP & UDP traffic to your instances
  • Handle millions of request per seconds
  • Ultra-low latency
• NLB has one static IP per AZ, and supports assigning Elastic IP(helpful for whitelisting specific IP)
• NLB are used for extreme performance, TCP or UDP traffic
• Not included in the AWS free tier

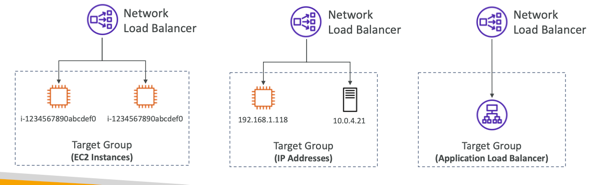

Target Groups

• EC2 instances
• IP Addresses – must be private IPs
• Application Load Balancer
• Health Checks support the TCP, HTTP and HTTPS Protocols

Gateway Load Balancer (GWLB)

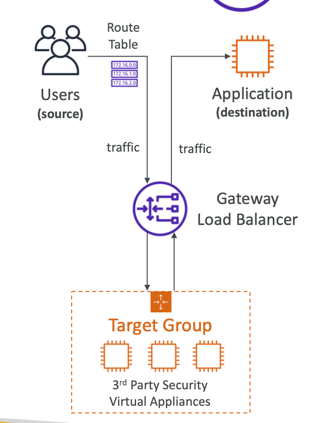

• Deploy, scale, and manage a fleet of 3rd party network virtual appliances in AWS
• Operates at Layer 3 (Network Layer) – IP Packets
• Combines the following functions:
  • Transparent Network Gateway – single entry/exit for all traffic
  • Load Balancer – distributes traffic to your virtual appliances
• Uses the GENEVE protocol on port 6081

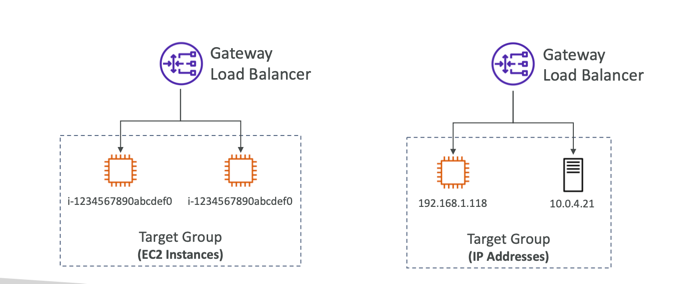

Target Groups

• EC2 instances
• IP Addresses – must be private IPs

Sticky Sessions (Session Affinity)

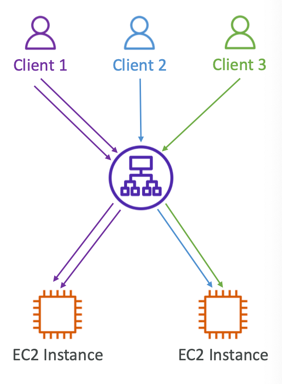

• It is possible to implement stickiness so that the same client is always redirected to the same instance behind a load balancer
• This works for Classic Load Balancer, Application Load Balancer, and Network Load Balancer
• For both CLB & ALB, the “cookie” used for stickiness has an expiration date you control
• Use case: make sure the user doesn’t lose his session data
• Enabling stickiness may bring imbalance to the load over the backend EC2 instances

Cookie Names

• Application-based Cookies
  • Custom cookie
    • Generated by the target
    • Can include any custom attributes required by the application
    • Cookie name must be specified individually for each target group
    • Don’t use AWSALB, AWSALBAPP, or AWSALBTG (reserved for use by the ELB)
  • Application cookie
    • Generated by the load balancer
    • Cookie name is AWSALBAPP
• Duration-based Cookies
  • Cookie generated by the load balancer
  • Cookie name is AWSALB for ALB, AWSELB for CLB

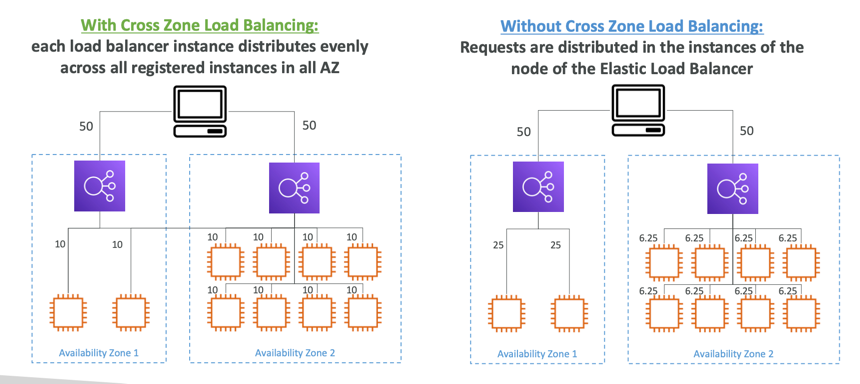

Cross-Zone Load Balancing

• Application Load Balancer
  • Enabled by default (can be disabled at the Target Group level)
  • No charges for inter AZ data
• Network Load Balancer & Gateway Load Balancer
  • Disabled by default
  • You pay charges ($) for inter AZ data if enabled
• Classic Load Balancer
  • Disabled by default
  • No charges for inter AZ data if enabled

SSL/TLS

Basics

• An SSL certificate allows traffic between your clients and your load balancer o be encrypted in transit (in-flight encryption)
• SSL refers to Secure Sockets Layer, used to encrypt connections
• TLS refers to Transport Layer Security, which is a newer version
• Nowadays, TLS certificates are mainly used, but people still refer as SSL
• Public SSL certificates are issued by Certificate Authorities (CA)
• Comodo, Symantec, GoDaddy, GlobalSign, Digicert, Letsencrypt, etc…
• SSL certificates have an expiration date (you set) and must be renewed

Load balancer - SSL Certificates

• The load balancer uses an X.509 certificate (SSL/TLS server certificate)
• You can manage certificates using ACM (AWS Certificate Manager)
• You can create upload your own certificates alternatively
• HTTPS listener:
  • You must specify a default certificate
  • You can add an optional list of certs to support multiple domains
  • Clients can use SNI (Server Name Indication) to specify the hostname they reach
  • Ability to specify a security policy to support older versions of SSL / TLS (legacy clients)

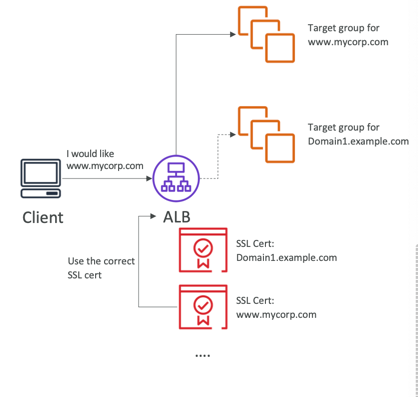

SSL - Server Name Indication (SNI)

• SNI solves the problem of loading multiple SSL certificates onto one web server (to serve multiple websites)
• It’s a “newer” protocol, and requires the client to indicate the hostname of the target server in the initial SSL handshake
• The server will then find the correct certificate, or return the default one Note:
• Only works for ALB & NLB (newer generation), CloudFront
• Does not work for CLB (older gen)

ELB - SSL Certificates

• Classic Load Balancer (v1)
  • Support only one SSL certificate
  • Must use multiple CLB for multiple hostname with multiple SSL certificates
• Application Load Balancer (v2)
  • Supports multiple listeners with multiple SSL certificates
  • Uses Server Name Indication (SNI) to make it work
• Network Load Balancer (v2)
  • Supports multiple listeners with multiple SSL certificates
  • Uses Server Name Indication (SNI) to make it work

Connection Draining

• Feature naming
  • Connection Draining – for CLB
  • Deregistration Delay – for ALB & NLB
• Time to complete “in-flight requests” while the instance is de-registering or unhealthy
• Stops sending new requests to the EC2 instance which is de-registering
• Between 1 to 3600 seconds (default: 300 seconds)
• Can be disabled (set value to 0)
• Set to a low value if your requests are short
