SQS (Simple Queue Service)

• Oldest AWS offering (over 10 years old)
• Fully managed service (~serverless), used to decouple applications

Standard Queues

Attributes

• Unlimited throughput, unlimited number of messages in queue

• Default retention of messages: 4 days, maximum of 14 days

• Low latency ( less 10 ms on publish and receive)

• Limitation of 256KB per message sent

• Can have duplicate messages (at least once delivery, occasionally)

• Can have out of order messages (best effort ordering)

Producing messages

• Produced to SQS using the SDK (SendMessage API)
• The message is persisted in SQS until a consumer deletes it
• Message retention: default 4 days, up to 14 days
• Example: send an order to be processed
  • Order id
  • Customer id
  • Any attributes you want
• SQS standard: unlimited throughput

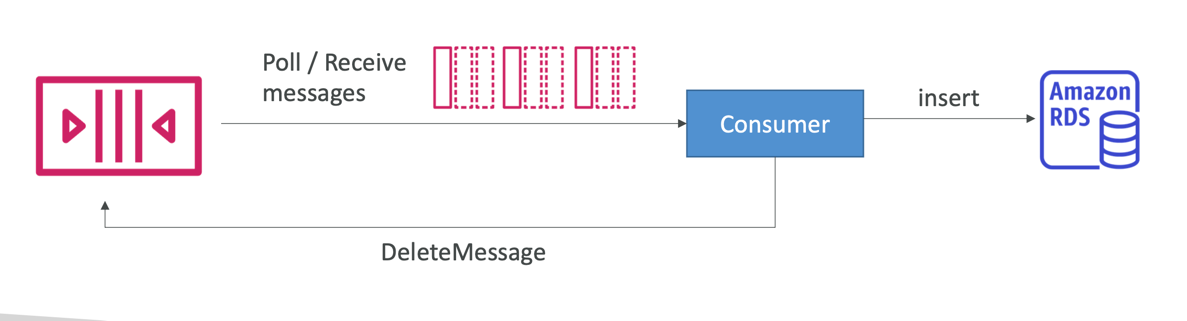

Consuming messages

• Consumers (running on EC2 instances, servers, or AWS Lambda)…
• Poll SQS for messages (receive up to 10 messages at a time)
• Process the messages (example: insert the message into an RDS database)
• Delete the messages using the DeleteMessage API

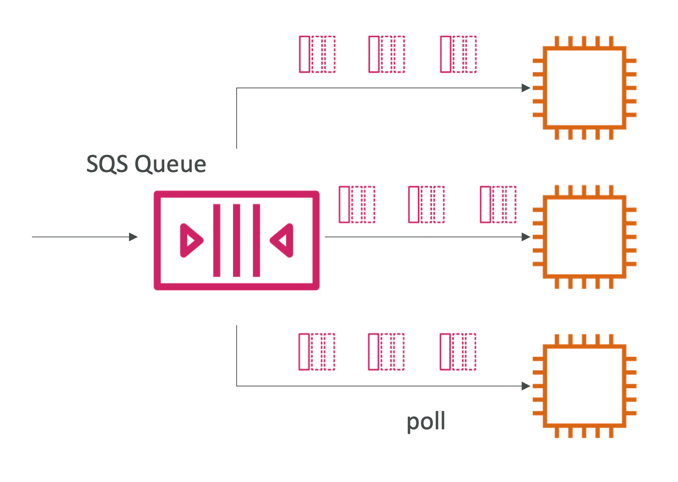

Multiple EC2 Instances Consumers

• Consumers receive and process messages in parallel
• At least once delivery
• Best-effort message ordering
• Consumers delete messages after processing them
• We can scale consumers horizontally to improve throughput of processing

SQS with Auto Scaling Group (ASG)

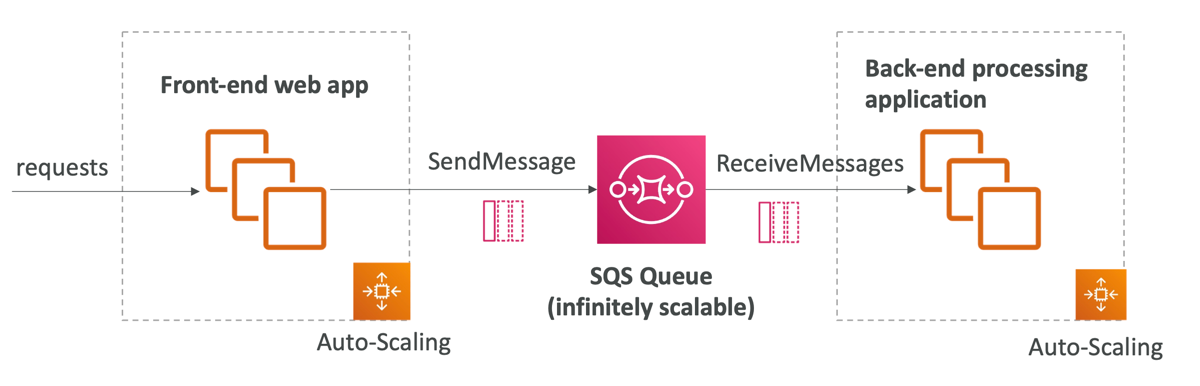

SQS to decouple between application tiers

Security

• Encryption:
  • In-flight encryption using HTTPS API
  • At-rest encryption using KMS keys
  • Client-side encryption if the client wants to perform encryption/decryption itself
• Access Controls: IAM policies to regulate access to the SQS API
• SQS Access Policies (similar to S3 bucket policies)
  • Useful for cross-account access to SQS queues
  • Useful for allowing other services (SNS, S3…) to write to an SQS queue

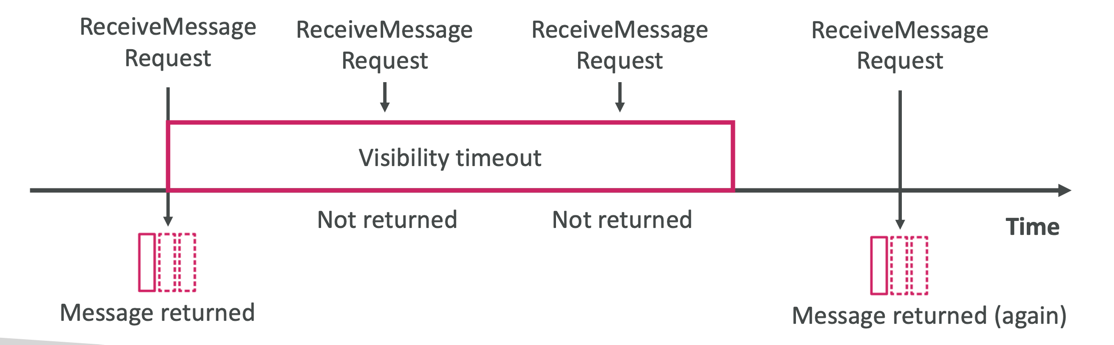

Message Visibility Timeout

• After a message is polled by a consumer, it becomes invisible to other consumers
• By default, the “message visibility timeout” is 30 seconds
• That means the message has 30 seconds to be processed
• After the message visibility timeout is over, the message is “visible” in SQS
• If a message is not processed within the visibility timeout, it will be processed twice
• A consumer could call the ChangeMessageVisibility API to get more time
• If visibility timeout is high (hours), and consumer crashes, re-processing will take time
• If visibility timeout is too low (seconds), we may get duplicates

Long Polling

• When a consumer requests messages from the queue, it can optionally "wait" for messages to arrive if there are none in the queue
• This is called Long Polling
• LongPolling decreases the number of API calls made to SOS while increasing the efficiency and reducing latency of your application
• The wait time can be between I sec to 20 sec(20 sec preferable)
• Long Polling is preferable to Short Polling
• Long Polling can be enabled at the queue level or at the API level using WaitTimeSeconds

Decoupling applications

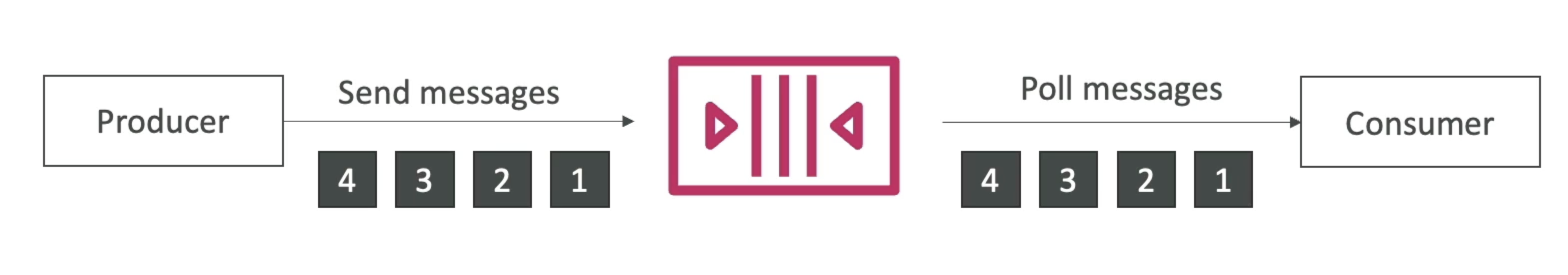

FIFO Queues

• Limited throughput: 300 msg/s without batching, 3000 msg/s with
• Exactly-once send capability (by removing duplicates using Deduplication ID)
• Messages are processed in order by the consumer
• Ordering by Message Group ID (all messages in the same group are ordered) – mandatory parameter

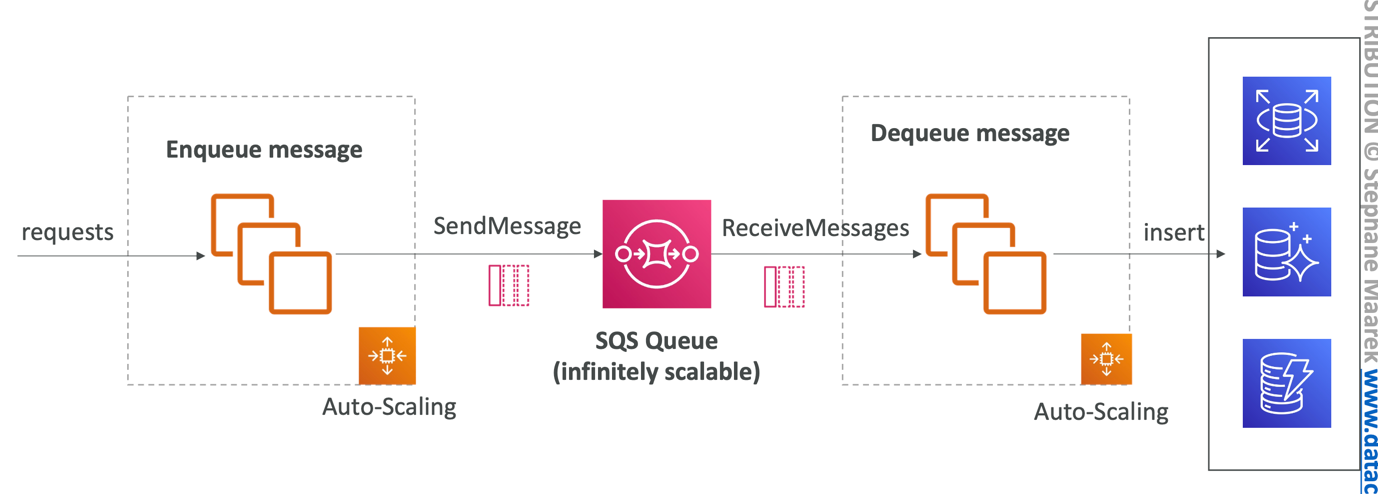

SQS as a buffer to database writes
