Api Gateway
- AWS Lambda + API Gateway: No infrastructure to manage
- Support for the WebSocket Protocol
- Handle API versioning (v1, v2…)
- Handle different environments (dev, test, prod…)
- Handle security (Authentication and Authorization)
- Create API keys, handle request throttling
- Swagger / Open API import to quickly define APIs
- Transform and validate requests and responses
- Generate SDK and API specifications
- Cache API responses

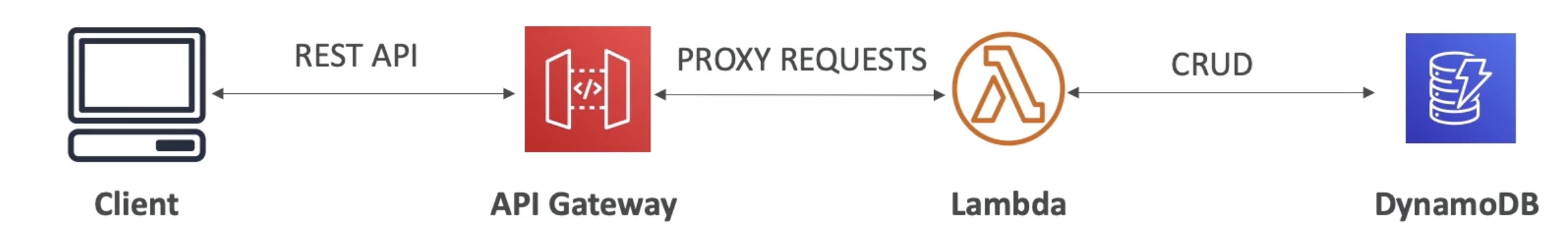

Example: building a serverless API
API Gateway – Integrations High Level
Lambda Function
- Invoke Lambda function
- Easy way to expose REST API backed by AWS Lambda
HTTP
- Expose HTTP endpoints in the backend
- Example: internal HTTP API on premise, Application Load Balancer…
- Why? Add rate limiting, caching, user authentications, API keys, etc…
AWS Service
- Expose any AWS API through the API Gateway
- Example: start an AWS Step Function workflow, post a message to SQS
- Why? Add authentication, deploy publicly, rate control...
API Gateway – AWS Service Integration Kinesis Data Streams example
API Gateway - Endpoint Types
Edge-Optimized (default): For global clients
- Requests are routed through the CloudFront Edge locations (improves latency)
- The API Gateway still lives in only one region
Regional:
- For clients within the same region
- Could manually combine with CloudFront (more control over the caching strategies and the distribution)
Private:
- Can only be accessed from your VPC using an interface VPC endpoint (ENI)
- Use a resource policy to define access
API Gateway – Security
- User Authentication through
- IAM Roles (useful for internal applications)
- Cognito (identity for external users – example mobile users)
- Custom Authorizer (your own logic)
- Custom Domain Name HTTPS security through integration with AWS Certificate Manager (ACM)
- If using Edge-Optimized endpoint, then the certificate must be in us-east-1
- If using Regional endpoint, the certificate must be in the API Gateway region
- Must setup CNAME or A-alias record in Route 53
